Description
We provide the world's largest size commercially available Bi2Te3 crystals at the highest quality Bi2Te3 and affordable prices. Our crystals exceed competing crystals both in size and quality.
Description
Bismuth Telluride (Bi₂Te₃) Developed at our facilities since early 2013 to optimize the perfect stoichiometry and stabilize the topological insulator state.Topological insulator is a new class of material, in which its bulk is insulating while its surface states are conducting. The surface states of topological insulator are robust against any external perturbation because such states are protected by time-reversal symmetry. Similar to transition metal dichalgonides and graphite, Bi₂Te₃ is also layered material with weak interlayer coupling. Our crystals are develop in our laboratories in last two years and are highly crystalline. Raman spectrum displays very sharp and clear modes at 102 cm-1 and 134cm-1 with FWHM less than 4cm-1. If your research needs doping in Bi2Te3, we can also incorporate Ca, Nb, Ni, and Au dopants in Bi2Te3 crystals. Please also see our Tl alloyed Bi2Te3 crystals to advance your topological insulator studies.
Characteristics of Bi2Te3 crystals

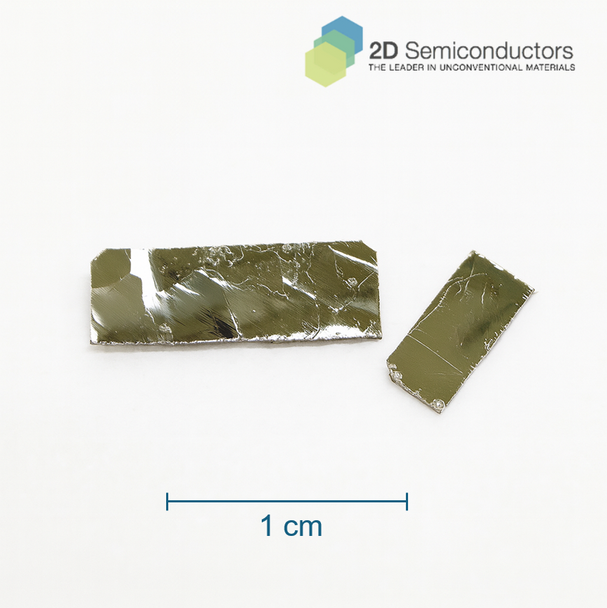

| Crystal size | ~1 cm |
| Material properties | Semiconductor, thermoelectric, and topological insulator |
| Crystal structure | Trigonal phase |
| Unit cell parameters | a=b=0.431 nm, c=3.052 nm; α=β=90°, γ=120° |
| Growth method | Bridgman growth technique (CVT or flux grown crystals also available) |
| Purity | 6N electronic grade [Confirmed and guaranteed at 99.9999 %] |
XRD data collected from Bi2Se3 single crystals
Selective area electron diffraction (SAED) pattern collected from Bi2Te3 crystals
Raman spectrum of Bi2Te3 crystals
EDS spectrum collected from Bi2Te3 crystals
Additional Information
Elements: |
Bi,Te |
Element: |
Bismuth |
Element: |
Tellurium |
Formula: |
Bi2Te3 |
Material class: |
M2X3 |
Properties: |
Semiconductor |
Properties: |
Topological |
Properties: |
Thermoelectric |
Band gap range: |
IR |
Growth method: |
Bridgman |
Growth method: |
Flux |
Growth method: |
CVT |
Doping: |
Undoped |
Doping: |
p-Type |
Doping: |
n-Type |
